Sapphire S2T

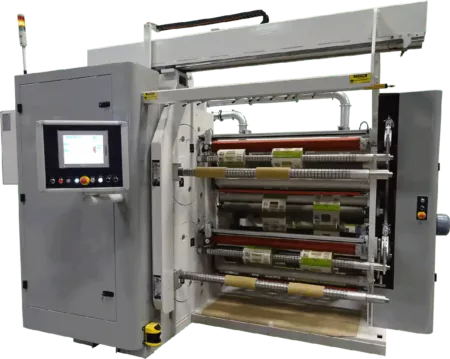

This is the right choice of slitter rewinder for the converter looking for maximum productivity and minimum downtime. This is achieved by the machine continuing to run, whilst the operator (or machine) takes off the finished rolls and puts new cores onto the rewind shaft.
Enquiry
If you are interested in finding out more about the [page_title] , please fill out the following form and a member of our team will be in touch with you soon.

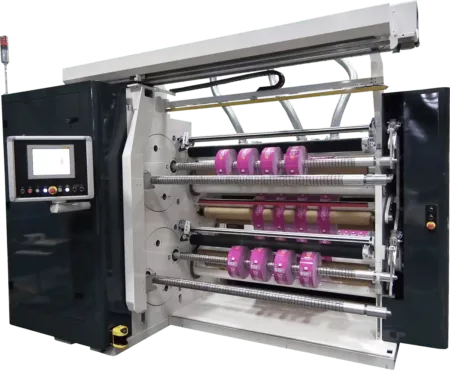

Sapphire S2TWide-Web Duplex Turret Slitter Rewinder
The key benefit of this duplex turret slitter rewinders for users is productivity. This is achieved by the machine continuing to run whilst the machine, or operator, are offloading finished slit rolls and re-coring the rewind shafts. On duplex machines the machine is not running, however, this loss of productivity can be reduced on a duplex turret slitter rewinder type of machine as the 4 rewinding shafts (2 on each turret ring) ensures that the machine continues to run, whilst these procedures are taking place.
The design of the Sapphire S2T is based on our Sapphire S2 duplex machine. No hydraulics on the machine makes it a clean operation for flexible packaging and medical applications and the latest control technology makes the machine easy to use, with a minimal webpath length. Ease and quicker setup times can also be implemented on the machine with further automation options, such as automatic knife and rewind core positioning systems.
The machine incorporates our unique ‘turret shaft support’ which ensures that the rewind shafts remain fully supported through the turreting cycle. Due to this support the machine is able to offer very fast cycle times, from the time the machine stops when the set length has been reached, to the time it starts the next run.
The versatility of being able to run different substrates with no operator intervention or maintenance is achieved through our vacuum roller along with our driven layon roller system.

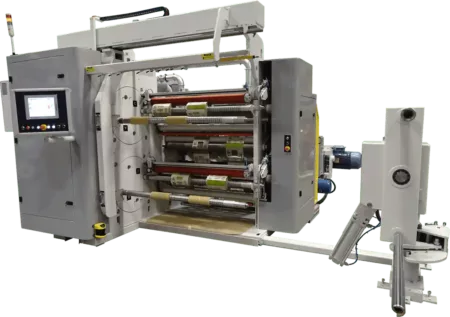

A range of roll handling solutions on the rewind side of the machine can also be implemented on the machine, from simple fixed pedestals though to full robotics.
- Separate shaftless unwind with independent movement of each arm

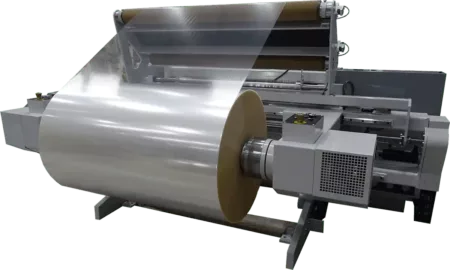

- Electric roll lifting system which uses no hydraulics
- Braked unwind or driven with dancer roller

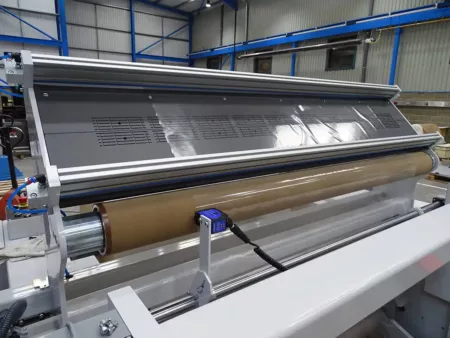

- Splicing table on unwind for roll joining
- Full web guiding with ASHE own edge / line guider for all materials
- Vacuum roller for tension isolation
- All forms of slitting can be accommodated on the machine

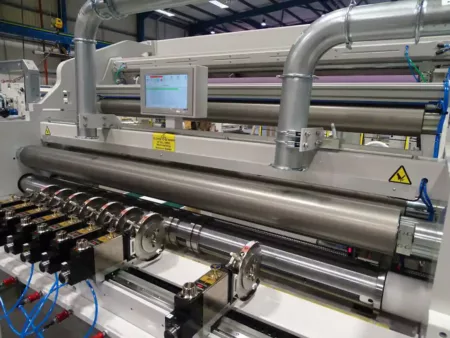

- Full automation can be offered with automatic knife / blade positioning available for all forms of slitting
- Laser aided positioning or digital readout systems available for slitting
- ASHE differential (friction) winding shafts which require NO LUBRICATION
- Open loop or closed loop systems for rewind tension control
- Motor and drive on each rewind shaft as standard
- Driven layon (Contact) roller system with different widths available
- Intuitive HMI with memory storage
- Full remote diagnostics with data transfer possibilities
- Independent motors and drives for each rewind shaft
- Full turret shaft support system

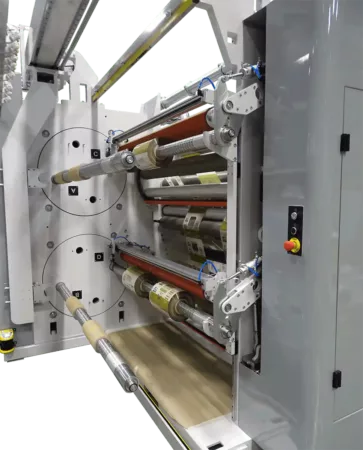

- Automatic cross cut system
- Extremely short turret cycle times
| Material width | 1000mm (40″) to 2000mm (80″) |
| Parent roll diameter | 1800mm (71″) |
| Maximum rewinding diameter | 450mm (18″) & 600mm (24″) |
| Slitting methods | All slitting methods available |
| Slitting widths | Minimum 25mm (1″) |
| Machine speed | 800m/min (2620ft/min) |
Download this brochure as a PDF:
ASHE Product RangeSapphire S2T Slitter RewinderKey Features
