Diamond Roll Slitter Rewinder
The Diamond roll slitter rewinder is designed to be a compact, cost effective solution whilst keeping production requirements in mind. This slitter rewinder machine has been based on our renowned Sapphire range of machines, and therefore has the flexibility to be able to slit and rewind most products at high speeds.
Enquiry
If you are interested in finding out more about the [page_title] , please fill out the following form and a member of our team will be in touch with you soon.
DiamondWide-Web Duplex Slitter Rewinder
The Diamond cantilevered twin shafted slitter rewinder has been designed to be a modular, cost effective solution, whilst maximising production output. This roll slitter rewinder is based on our Sapphire s2 machine, which brings the benefits of being able to slit the majority of web based materials.
The simple design of the Diamond roll slitter rewinder makes it easy to operate and has a maximum running speed of 500mpm (1640ft/min). The unwind can handle a maximum diameter of 1000mm (40”) and is available in a range of widths from 1000mm (40”) to 1850mm (73”).
As the design is a modular concept, the machines can be configured to meet your exact requirements. This slitter rewinder is available with an integrated unwind to make it a one piece unit, or with a separate unwind to allow ease of access to the slitting station, or, so that other equipment, such as perforation can be easily accommodated within the machine.

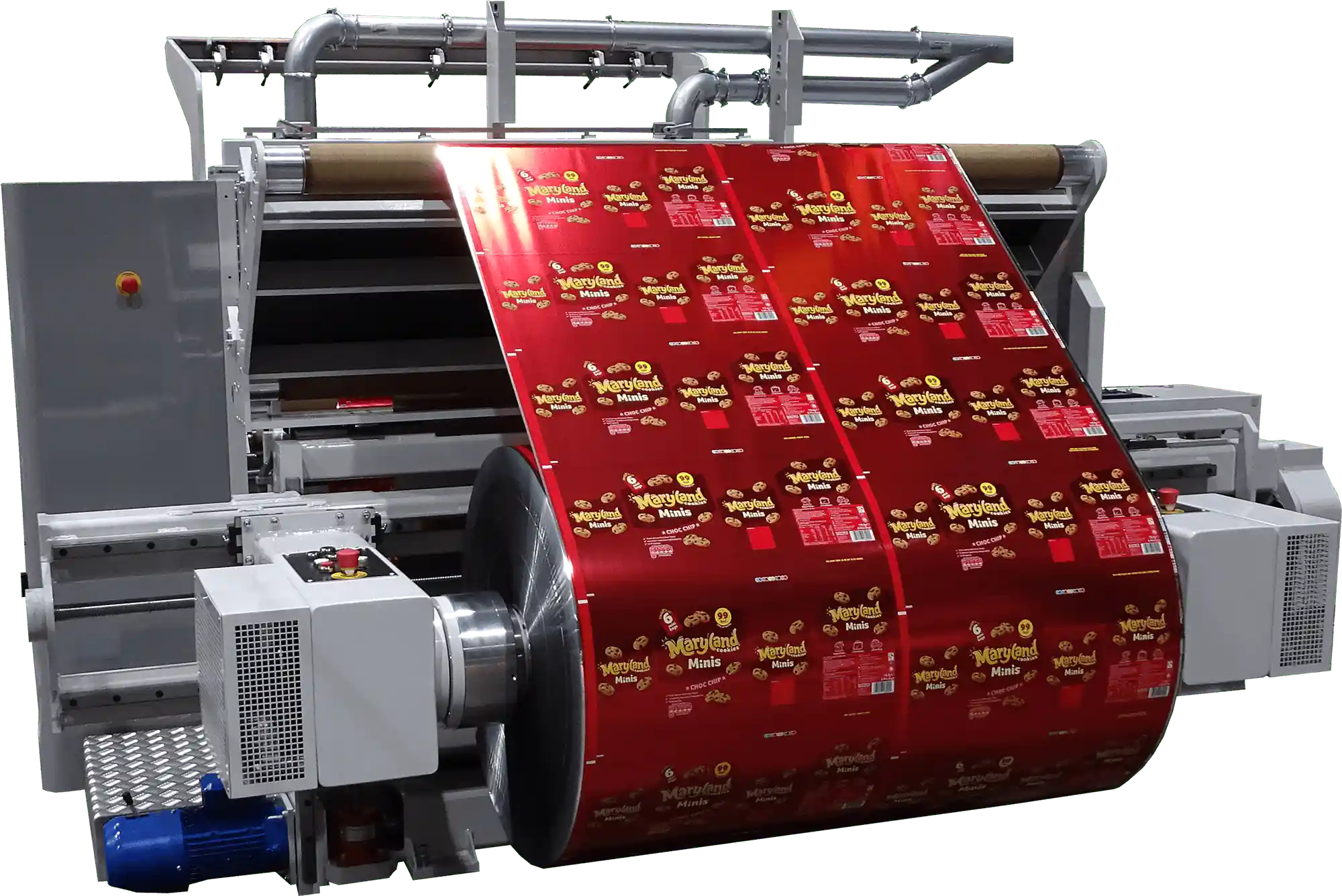

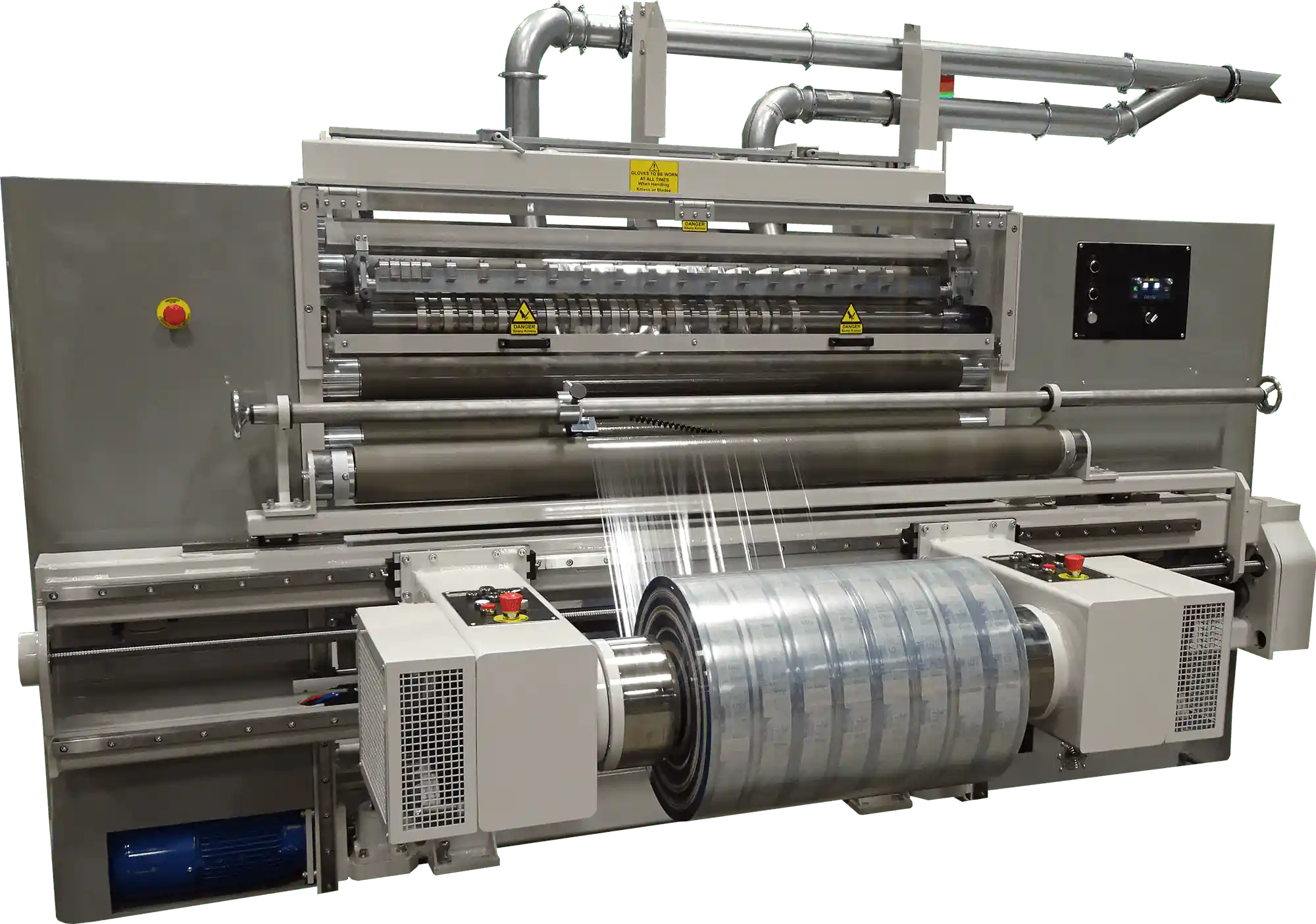

- Integrated shaftless unwind stand or separated from main machine frame
- Electric roll lifting system which does not use hydraulics
- Full web guiding with ASHE own edge guider for all materials

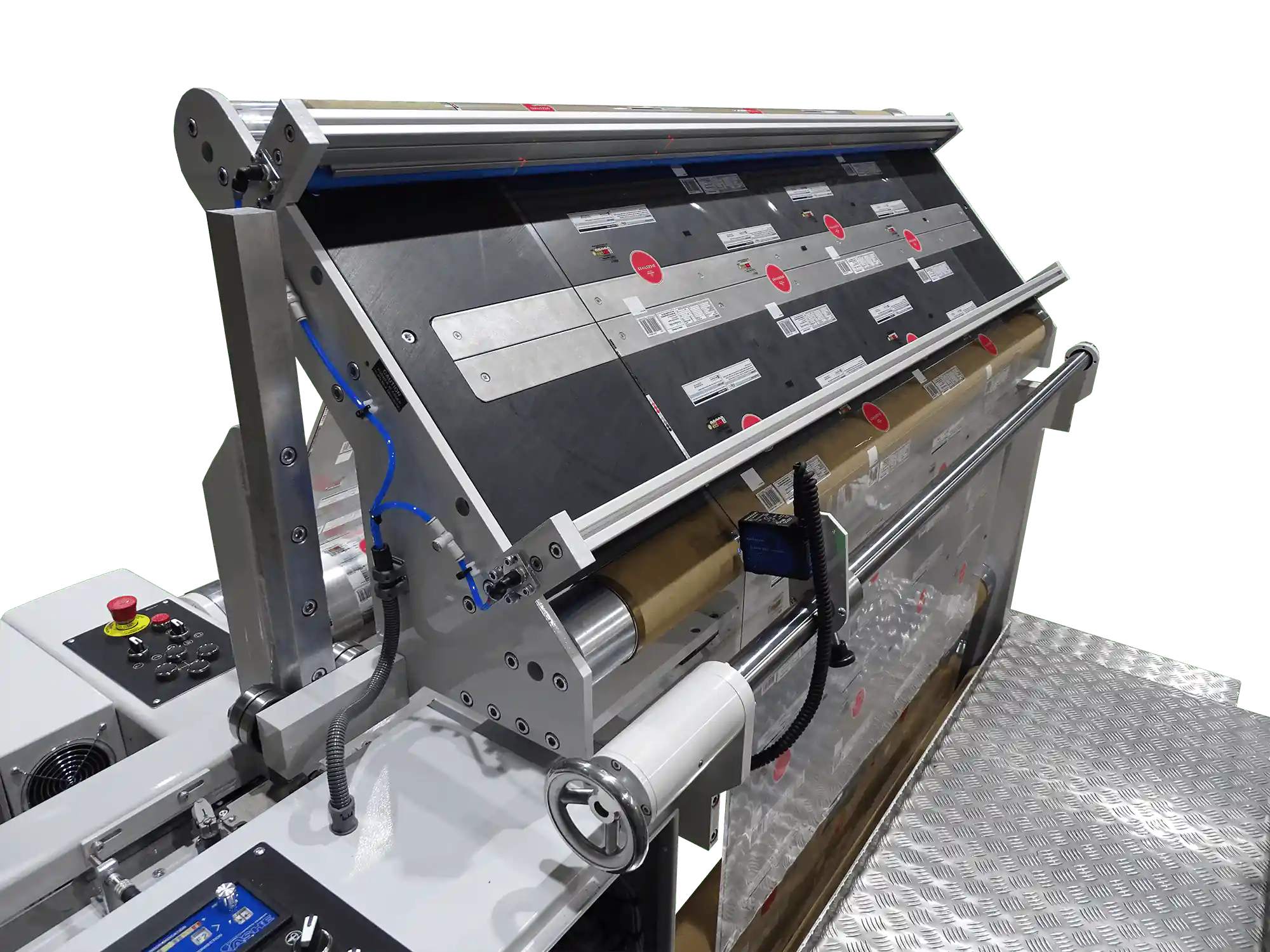

- Splicing table on unwind for ease of roll joining

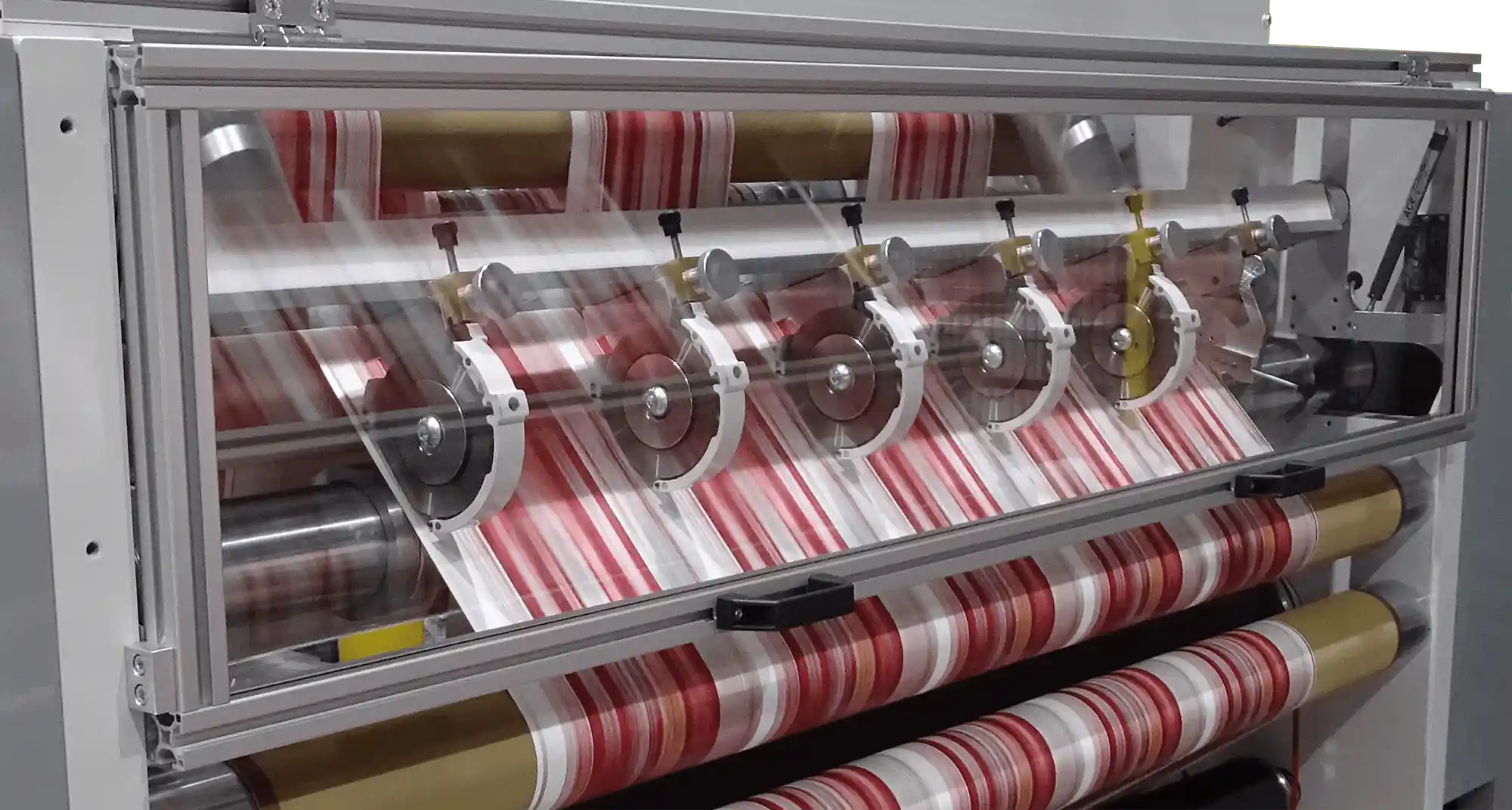

- Range of slitting options from razor, rotary shear or crush cut
- Vacuum pull roller for tension isolation
- Laser aided device for assisted knife positioning
- ASHE differential (friction) winding shafts which require NO LUBRICATION
- Antistatic equipment
- Layon (contact) roller with different widths available
- Laser aided devices for rewind core positioning
- Range of trim systems available
- Intuitive HMI with memory storage

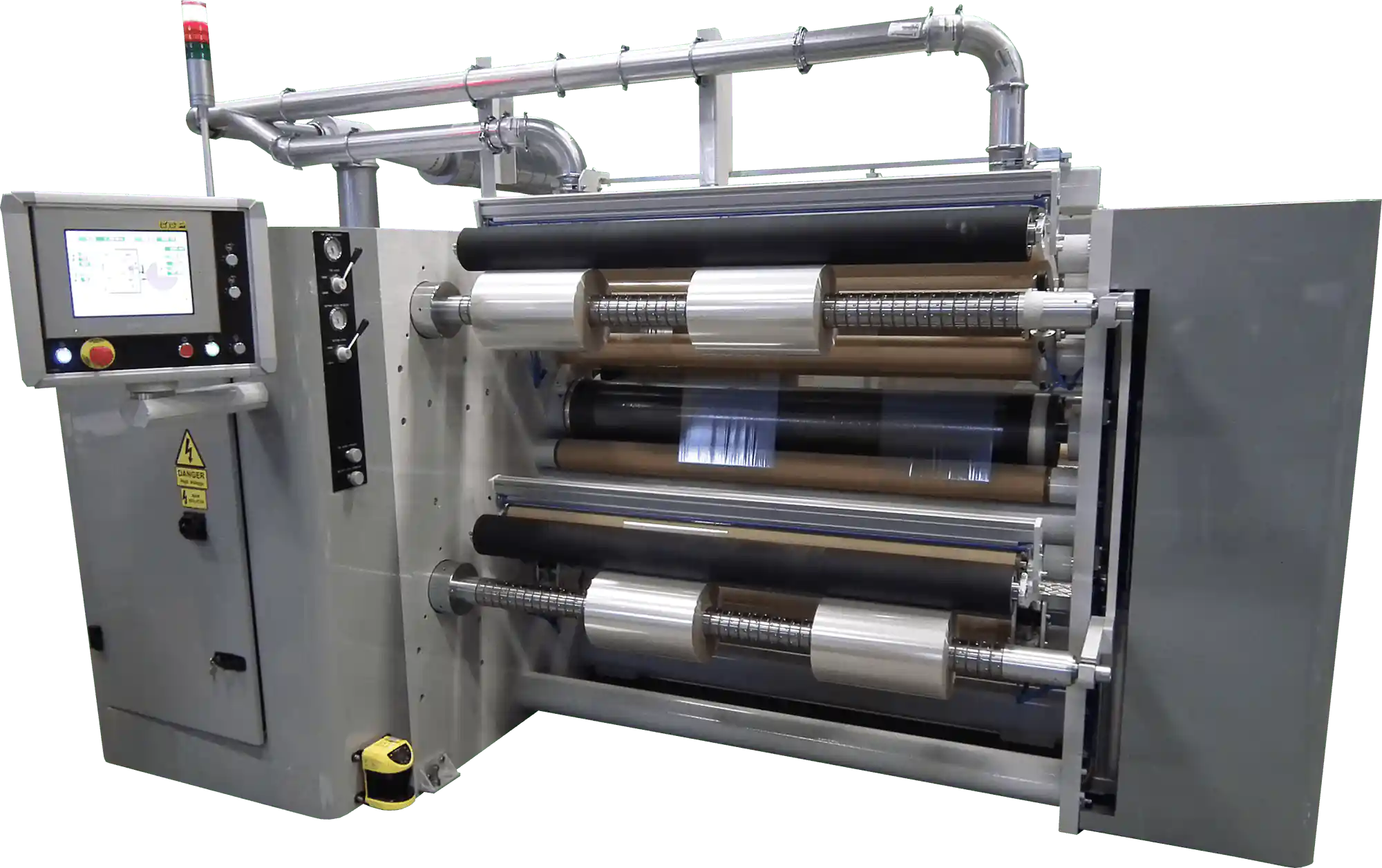

- Cantilevered rewind for ease of unloading
- Range of different unloading systems available from the machine
- Full remote diagnostics available
| Material width | 1000mm (40″) to 1850mm (73″) |
| Parent roll diameter | 1000mm (40″) |
| Maximum rewinding diameter | 610mm (24″) |
| Slitting methods | Razor Rotary Shear Crush |
| Slitting widths | Minimum 25mm (1″) |
| Machine speed | 500m/min (1640ft/min) |
Download this brochure as a PDF:
ASHE Product RangeDiamond Duplex Slitter RewinderKey Features
